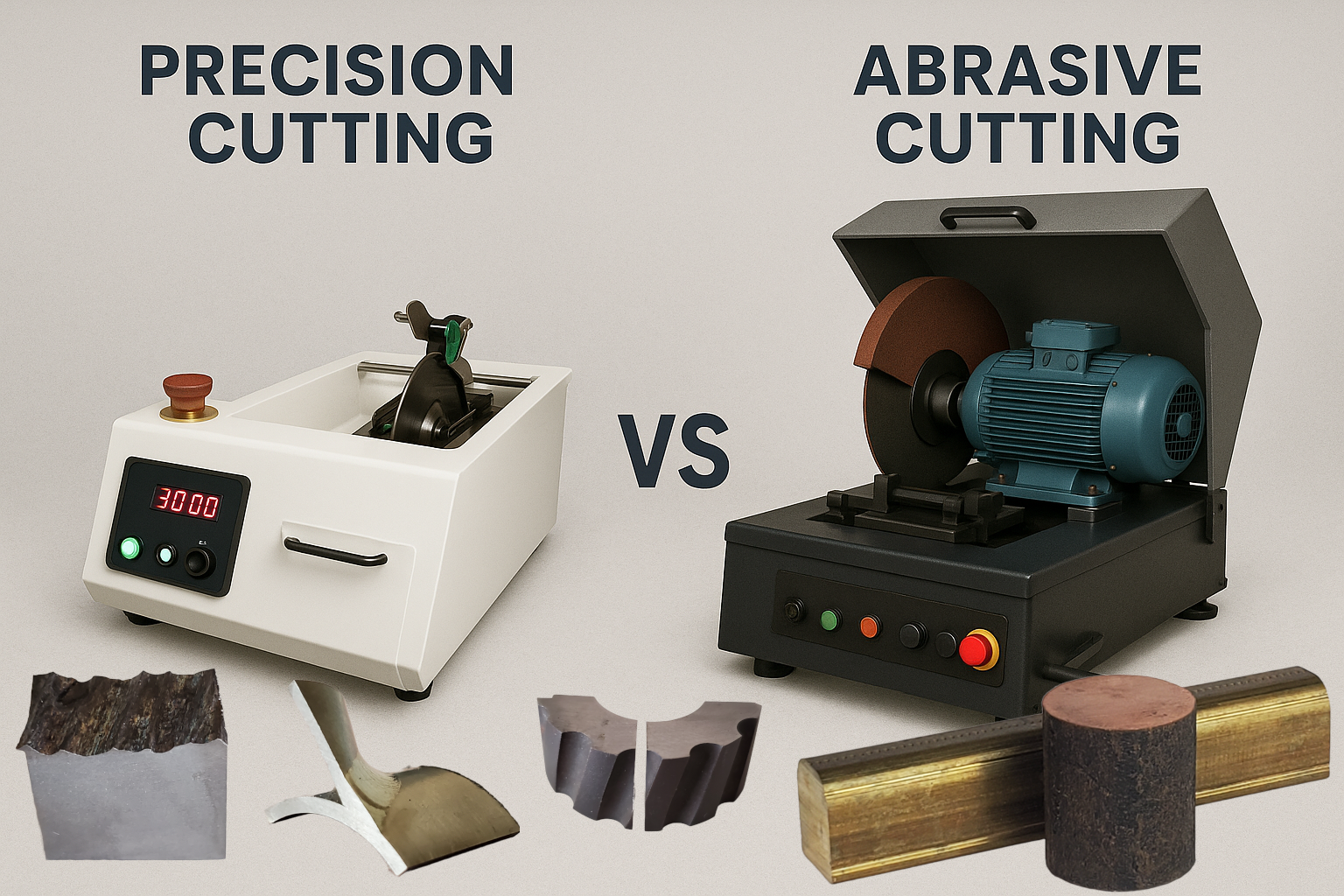

What Is the Difference Between Metallographic Precision Cutting and Abrasive Cutting?

When it comes to metallographic sample preparation, cutting is one of the most critical steps in ensuring that your samples are ready for accurate analysis. The choice between precision cutting and abrasive cutting can significantly impact the integrity and quality of your final results. Here's a breakdown of the two methods, their advantages, and when to choose one over the other.

Precision Cutting: Control, Accuracy, and Sample Integrity

Precision cutting is a low-force, slow-speed method designed to produce clean, accurate cuts with minimal damage to the sample. This technique is especially important when working with delicate or high-value samples, or when downstream analysis such as SEM, TEM, or microhardness testing requires a pristine surface.

Precision saws, such as OnPoint Abrasives' LabPro 150, are ideal for cutting small components and parts ranging from 5 mm to 50 mm. These systems are extremely versatile and delicate enough for nearly any material, making them indispensable in metallography and materials testing. A built-in micrometer allows users to target specific areas of interest and even perform serial wafer sectioning. The saws use ultra-thin blades—down to 0.016" for 4" blades—providing clean, minimal-distortion cuts.

The LabPro 150 also features a built-in coolant chamber to keep specimens cool during cutting, which preserves sample integrity. With variable speeds from 50 RPM to 1500 RPM and gravity-fed loading, operators can maintain consistent pressure or even walk away during operation. Various chucks and clamps are available to fixture a wide range of specimen geometries.

Abrasive Cutting: Speed and Versatility for Larger Samples

Abrasive cutting prioritizes speed and the ability to handle larger or tougher samples. Abrasive cut-off saws are typically used for cutting parts from 30 mm up to 250 mm. Most of these systems use a manual chop-feed style, though some advanced models offer automated feed rates.

These saws are water-cooled using a large external coolant tank and pump, which helps manage heat during sectioning. Abrasive blades consist of abrasive particles bonded with resin that continuously break down during use to expose fresh abrasives—this self-sharpening process ensures consistent cutting but also results in blade wear over time.

To prevent burrs at the end of the cut, abrasive saws typically clamp the specimen from both sides, ensuring stability and clean sectioning. With the appropriate blade and setup, abrasive cutting can achieve surface finishes comparable to those of precision saws. This is especially true since most metallographic and metallurgical samples undergo resurfacing (such as grinding and polishing) before final analysis.

Shared Features and Versatility

Despite their differences, both precision and abrasive cut-off saws share several features:

• Water-cooled systems for heat management and surface preservation

• Capable of sectioning nearly any material when paired with the appropriate blade

• Highly versatile for different sample geometries and sizes

• Able to produce flat, deformation-free surfaces—ideal for the next steps in the metallographic preparation process

Which Method Should You Choose?

The decision depends largely on the size and sensitivity of the sample and the goals of your analysis. If you're working with small, delicate specimens or need extreme precision for high-resolution evaluation, a precision saw is ideal. If you're preparing larger samples or need to work quickly without sacrificing surface integrity, abrasive cutting may be more suitable.

Ultimately, both methods are highly effective, and many labs involved in metallography, materials testing, and metallurgical research benefit from having both systems available to meet a wide range of sample preparation needs.

Looking to optimize your sample prep process? Contact OnPoint Abrasives to learn more about the LabPro 150 Precision Cutter and our full range of cutting solutions.
